Thin gauge Aluminium Foil , Max Width 1900mm For Precoating.ceiling

Product Categories
Guang Xi Baisheng Light Metal Material Co.Ltd
Contact Now

Thin gauge Aluminium Foil , Max Width 1900mm For Precoating.ceiling

Brand Name : GBS

Model Number : GBS-LSDC

Certification : ISO

Place of Origin : CHINA

MOQ : 12mts

Payment Terms : L/C, D/P, T/T

Supply Ability : 1200mts

Delivery Time : 4-5 weeks

Packaging Details : export wooden box

surface : mill finish,

material : AA1060/1070/1100/8011/3003/3005/3004/3104

Packing : wooden Pallets

max. width : 1900mm

thickness : 0.026---0.5mm

Contact Now

SPECIFICATION FOR ALUMINIUM BARE STRIP USED IN COMPOSITE PANEL AND CEILING

Product Description

  • NOMINATION : USED FOR FURTHER LAMINATION OF COMPOSITE PANEL
  • APPLICATION: COMPOSITE PANEL
  • ALLOY AND SPECIFICATION( NORMAL)

------- ALUMNIUM PS SHEETS FOR PRINTING

ALLOY TEMPER SIZE(MM) ID
GAUGE WIDTH

AA1100

H18

0.026—1.5

 1000----1900 400/500MM

AA3003

H14/24/16/26

0.026--1.5
  • MECHNICAL PROPERTY

ALLOY

 TEMPER

WIDTH

UTS

(Mpa)

ELOGATION(%)
1100 H18 ≥0.12-0.3 ≥150 ≥1
≥0.30-0.5 ≥2
≥0.5-1.0 ≥3
3003

H14

H24

 ≥0.15-0.3 145-175 ≥1
≥0.3-0.5 ≥2
≥0.5-1.0 ≥3

H16

H26

 ≥0.15-0.3 165-205 ≥1
≥0.3-0.5 ≥2
≥0.5-1.0 ≥3
H18/H28 ≥0.15-0.3 ≥185 ≥1

  • THICKNESS TOLERANCE(MM)

  • THICKNESS(MM)

THICKNESS TOLERANCE(MM)
≥0.12-0.20 +/-0.010
≥0.20-0.30 +/-0.015
≥0.3-0.50 +/-0.020
≥0.50-1.0 +/-0.025
  • WIDTH TOLERANCE: +/-1.5MM

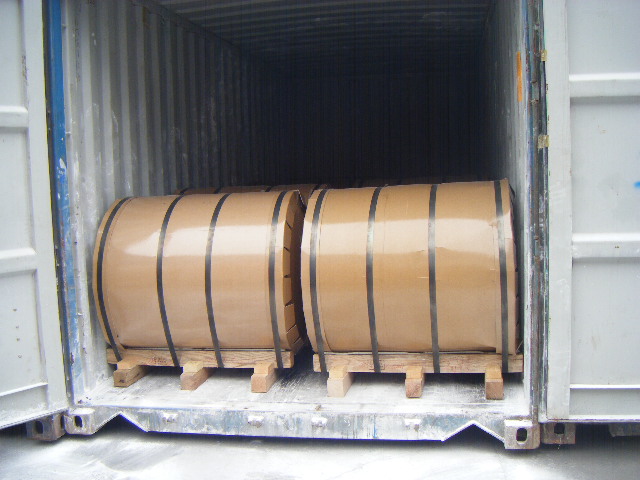

  • package: wooden pallets with eye to wall or eye to sky

Thin gauge Aluminium Foil , Max Width 1900mm For Precoating.ceiling Thin gauge Aluminium Foil , Max Width 1900mm For Precoating.ceiling
