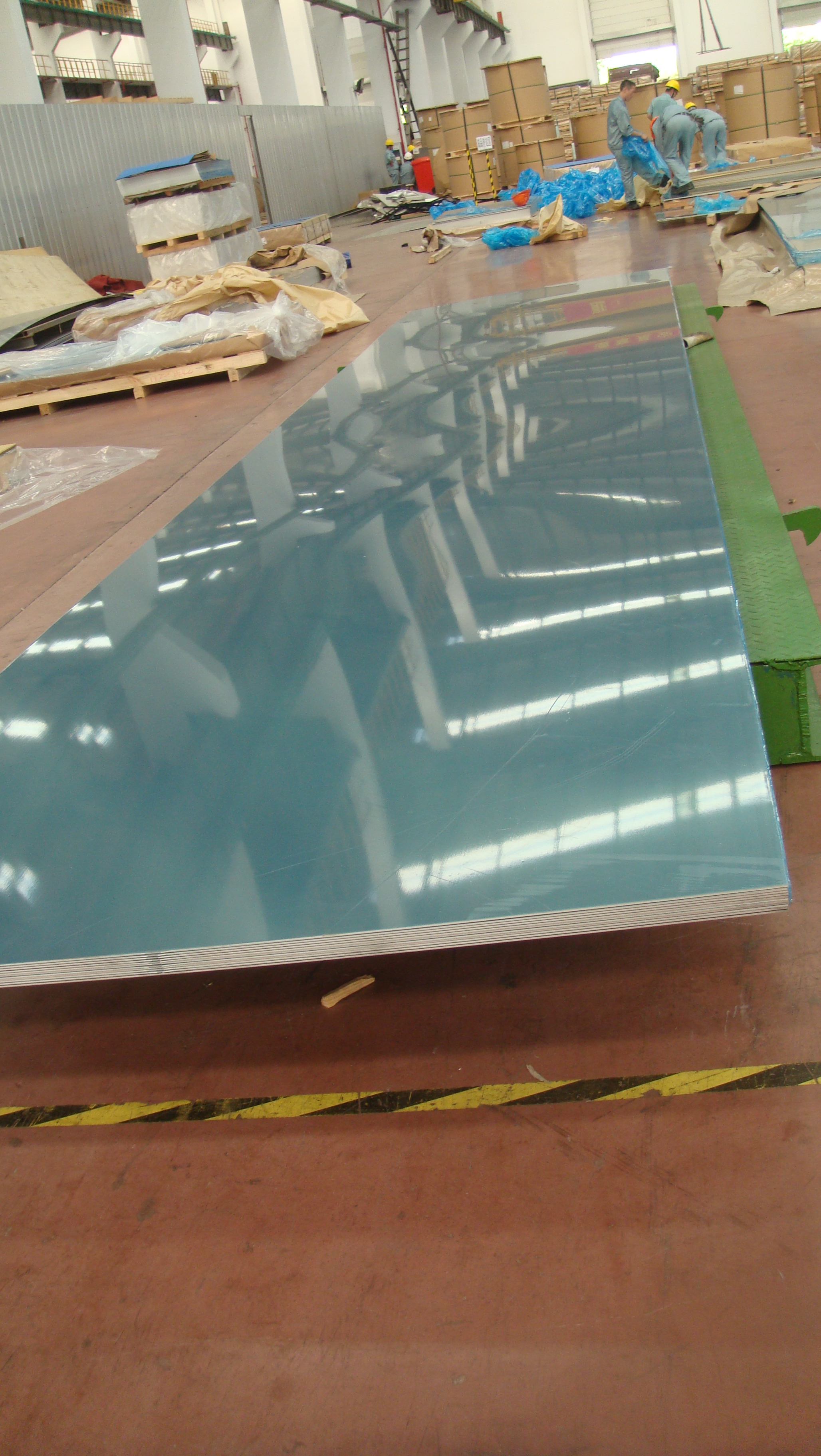

ALUMINIUM AND ALUMINIUM ALLOY ROLLED SHEET FOR WASHING MACHINE
Product Description
1. Alloy, temper snd size
2. Tolerance(mm)
| Thinkness | Thickness tolerance | width | Width tolerance | length | Length tolerance | diagonal |
| 0.60-1.00 | plus minus 5%X thinkness | 500.-850 | ±0.7 | 1600.0- 2 000.0 | plus minue 0.5 | 0-1.0 |
| Note: other sizes shall be agreed between seller and buyer |
3. Sheet flatness
| Width direction | Length direction |
| <4 | <8 |
Note: sheets side curve shall less than 1 mm
- Sheet physical properties
| Alloy | Temper | U.T.S | Extension rate |
| Rfl/(N/mm2) | A,J% - |
| 1050A,1060 | H18 | >120 | ^2 |
| 3003 | H24,H14 | 145-215 | >4 |
surface shall be free from break, scrach, holes,corrosion, black marks, etc
5.Testing methods
size measurements :measuring meters whose accurate more than 0. 01 mtn for measuring thickness at 10mm distance at least from edge
measuring meters whose accurate more than 0. 5 mm for measuring width
Features of aluminum coil manufacturer in China :
- Superior quality of raw material.
- Reasonable and stable chemical composition.
- Accurate tolerance.
- Good mechanical property.
- We have the certificate of ISO9001.
- Our quality is based on EN,ASTM,JIS.
- We provide free sample service.
- The products can be made according to your requirement.
- Sincerely welcome your inquiry.
FAQ Quick Details
1. what about the surface?
it is mill finish,if you want any chemical treatment,let us know.
2. what about the delivery time?
normally 25-30days,exact delivery time depend on quantity and model of order.
3. what about payment term?
normally we accept T/T,30%prepaid,70%before loading.Or at sight100%L/C.
4. Can you provide samples?
yes,samples are free,customer just need bear the express cost.
5. what can customer do if they face quality problem?
you can send us details of the problems with pictures,if necessary you can send us samples of problems,we will resolve the problem through different ways,like compensation,make discounts in new orders and so on.Don't worry we will bear the responsibility caused by us.
